Getting an aircond installed in Malaysia sounds simple enough. You pick a unit, call a contractor, and expect to pay what was quoted on the phone. But once the technician arrives, the real numbers start coming out, and that initial RM250 “installation fee” you were told about can quietly balloon into something much more.
This is not a rare experience. It is actually one of the most common complaints from homeowners across different regions in Malaysia. The contractor is not always being dishonest either. The truth is, installation costs genuinely depend on your home’s wiring, wall type, pipe run distance, building rules, and several other site-specific factors that simply cannot be assessed over the phone.
This guide is for anyone planning a new air conditioning installation in Malaysia and wants to know exactly what they might be paying beyond the price of the unit itself. We will walk through every potential hidden charge, explain why it exists, and give you real price ranges so you can budget properly.

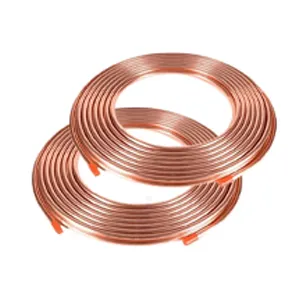

1. Copper Piping Costs
This is the single biggest source of surprise bills in Malaysia aircond installations.
Many contractors quote a base labor fee that only covers around 3 meters of copper piping. Anything beyond that, you pay extra per foot or per meter. If your outdoor compressor needs to be placed further away from the indoor unit, say along the side of a double-storey home, you could easily need 20 to 30 feet of piping.
The going rate for additional copper piping in Malaysia typically falls between RM18 and RM28 per foot, depending on the air conditioner’s horsepower (HP) and the pipe diameter required for the unit.
There is also the matter of pipe thickness. With most modern aircond units now using R32 refrigerant gas, you need copper pipes with a wall thickness of at least 0.71mm (SWG 22). Thinner pipes can crack under R32 pressure and cause gas leaks within one to two years. Always ask your contractor to confirm the pipe thickness specification before they start work.
When you are comparing quotes, always ask: “Does your price include piping, and how many feet?”

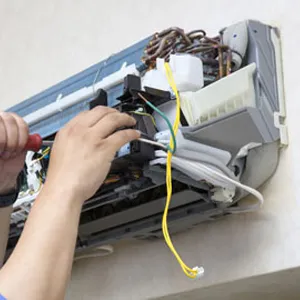

2. Electrical Wiring Upgrades
An aircond unit draws a dedicated electrical load, and if your home’s existing wiring is too thin or old, the installer may need to run a new cable from your distribution board (DB box) to the aircond power point.
Here is where costs can jump significantly. Upgrading from 1.5mm wiring to the recommended 2.5mm wire (required for 2.0HP and above units) from the DB box can cost RM300 or more, depending on the distance and wall type.
Older homes built before the 1990s are especially prone to this issue. If your wiring is outdated, skipping this upgrade is not just a cost-saving shortcut, it is a fire risk. A qualified installer should flag this during their site assessment.
3. Wall Hacking and Patching
Every split aircond installation requires a hole through your wall for the piping and drainage. In most standard brick or plasterboard homes, this is included in the base installation fee. But in homes with concrete or reinforced walls, the work is harder and the charge goes up.
Wall hacking for difficult materials can add RM80 to RM200 to your bill depending on wall thickness and the number of holes required.
After installation, the contractor may also patch and seal the hole, but do not assume this includes proper plastering and painting. Many contractors seal the gap with foam and call it done. If you want a neat finish, discuss this beforehand and ask whether wall patching and touch-up painting are included.
4. Dismantling the Old Unit
If you are replacing an existing aircond, you will likely be charged a dismantling fee. This covers the labour involved in safely removing the old indoor and outdoor unit, and importantly, pumping down the remaining refrigerant gas to prevent it from venting into the atmosphere.
Expect dismantling fees in the range of RM80 to RM150 per unit. Some contractors will waive or reduce this fee if you are installing a replacement unit through them, so it is worth negotiating.
Also clarify who is responsible for disposing of the old unit. Disposal charges are sometimes separate, especially for larger commercial units.

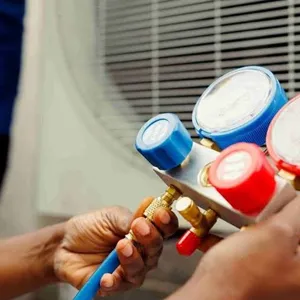

5. Vacuum Pump and Gas Charging
Here is a step that corners are often cut on. Before a new split aircond system is commissioned, the piping must be vacuumed using a vacuum pump to remove all moisture and air from inside the copper pipes. This process typically takes 15 to 30 minutes.
Skipping the vacuuming step is a shortcut that saves the installer time but significantly shortens your compressor’s lifespan. Moisture inside the refrigerant circuit causes acid buildup that can destroy a compressor within two to three years.
If your unit does not come pre-charged with sufficient gas, a gas top-up might also be needed. Gas charging costs in Malaysia typically range from RM80 to RM150 depending on the refrigerant type. Always ask whether vacuuming is part of the standard procedure, because some low-cost quotations skip this entirely.
6. New Power Point Installation
A dedicated power point is essential for every aircond unit. You should never share an aircond power point with other appliances, as this can cause tripping or even electrical fires.
If your room does not already have a dedicated power point in the right location, you will need one installed by a licensed electrician. This typically costs between RM100 to RM250 depending on the cable run distance from your DB box.
This cost is almost always excluded from standard installation quotes, so check this during your site survey.

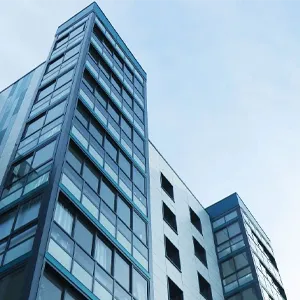

7. Condo or Strata Building Deposit
If you live in a condominium, serviced apartment, or any strata-titled property in Malaysia, there is one hidden cost that can genuinely catch you off guard: the management office deposit.
Many Joint Management Bodies (JMB) or Management Corporations (MC) require contractors to pay a refundable deposit before they are allowed access to the building for renovation or installation work. This deposit can range from RM500 to RM3,000, depending on the building management’s policies.
The deposit is usually refundable after the work is completed and the unit is inspected, but you need to have this cash available on the day. More importantly, you need to check this requirement with your building management at least one week before your scheduled installation date. Showing up without the deposit will result in your contractor being turned away at the gate, and you will need to reschedule.
8. Transport and High Floor Surcharges
Installation for ground floor or low rise properties is usually straightforward. But if your outdoor compressor needs to be installed on a high wall, rooftop, or requires scaffolding or an extended ladder, expect an additional surcharge.
High ladder or access surcharges in Malaysia typically range from RM50 to RM150 depending on the height and complexity. Properties that are far from the contractor’s base area may also attract a transport surcharge.
If you are bundling multiple units, this is a good time to negotiate. Installing three units at once gives you leverage to ask for a lump sum labour price, and you can often save RM50 to RM100 per unit compared to booking each installation separately.
9. Ongoing Maintenance Costs (The One Most People Forget)
Most people think about installation costs but forget that aircond ownership comes with recurring maintenance expenses. In Malaysia’s humid climate, skipping servicing allows mould and bacteria to build up in the unit, reduces cooling efficiency, and can increase your TNB electricity bill by 15 to 25% due to a clogged air filter forcing the motor to work harder.
A standard general service (basic cleaning) per unit typically costs between RM50 to RM120 in Malaysia, while a chemical wash runs from RM100 to RM200 per unit. For a home with three aircond units serviced twice a year, you are looking at roughly RM300 to RM720 annually just for maintenance.
When budgeting for a new aircond, factor in at least one year of servicing costs as part of your true total ownership cost.
You can use Sifu Engineering’s Aircond Electricity Cost Calculator to get a better picture of your expected monthly running costs based on your unit’s horsepower and daily usage hours.
How to Protect Yourself From Hidden Charges?
Knowing what to look out for puts you in a much stronger position. Here are a few practical steps before you confirm any installation booking:
- Request a site assessment first. A reputable installer will visit your home before quoting to assess piping distance, wiring condition, and wall type. Any quote given purely over the phone without a site visit should be treated as a ballpark only.
- Ask for a written itemised quotation. This should break out labour, piping, electrical work, and any additional charges separately. Do not accept vague “all-in” pricing without knowing exactly what is and is not included.
- Confirm what is excluded. Ask directly: “Are there any additional charges that might come up on the day?” A trustworthy contractor will tell you upfront.
- Check your condo management rules. If you live in a strata property, contact your JMB or MC a week before installation to confirm access requirements and deposit amounts.
- Never compromise on copper pipe quality. For R32 units, insist on 0.71mm or 0.81mm thickness piping. Thinner pipes are a long-term cost, not a saving.
Summary: Know This Before You Install
If you are in Penang, Perak, or Kedah and looking for a transparent installation quote, the team at Sifu Engineering provides itemised pricing with no surprise charges on the day.
Not sure what size air conditioner you need before getting a quote? Use the BTU Calculator to find the right horsepower for your room size.
And if you are considering brands, the Sifu Engineering product range includes top options from Daikin, Midea, Panasonic, Acson, and more. You can browse all products here or check out the latest aircond promotions for bundled deals that include installation. We also offer flexible installment plans for new units.
Frequently Asked Questions (FAQs)
Is copper piping always charged separately?
Not always, but often. Most quotes only include 3–5 feet. Extra piping costs about RM18–RM28 per foot, depending on size.
Do I need a new power outlet for each air conditioner?
Yes. Each unit should have its own dedicated power point. Installation costs about RM100–RM250 if one is needed.
What is a condo installation deposit?
Some buildings require a refundable deposit (RM500–RM3,000) before contractors can work. Check with your management office before installation day.
Can I reuse old air conditioning piping?
Sometimes. Only if the pipe is in good condition and compatible with your new gas type (such as R32). Your installer must inspect it first.
Air conditioners need servicing every 3–6 months. Over time, this adds several hundred ringgit, so it should be included in your long-term budget.
