You switch on the aircond, it runs fine for a few minutes, then the whole room goes dark because the circuit breaker flips. If this keeps happening, it is not something to ignore. A tripping breaker is your electrical system’s way of telling you there is too much current flowing somewhere it should not be, and in some cases it can point to a real fire risk.
In this guide, we break down the most common reasons an air conditioner trips the breaker, how to tell which one applies to you, and when it is time to stop guessing and call a technician.
How a Circuit Breaker Protects Your Aircond
A circuit breaker is a safety switch. It monitors how much current passes through the wiring, and if that current goes above a safe limit, it cuts the power automatically. This protects your wiring from overheating and reduces the risk of an electrical fire.
An aircond that draws more current than usual, even for a split second, can trigger this shut off. So the breaker itself is rarely the actual problem. It is usually reacting to something else going wrong inside the unit or the wiring connected to it.
Common Reasons Your Aircond Trips the Breaker
There is rarely just one reason behind a tripping breaker. It could be something as simple as a dusty filter, or something more serious like a failing compressor. Here are the most common culprits, starting with the ones you can usually check yourself.

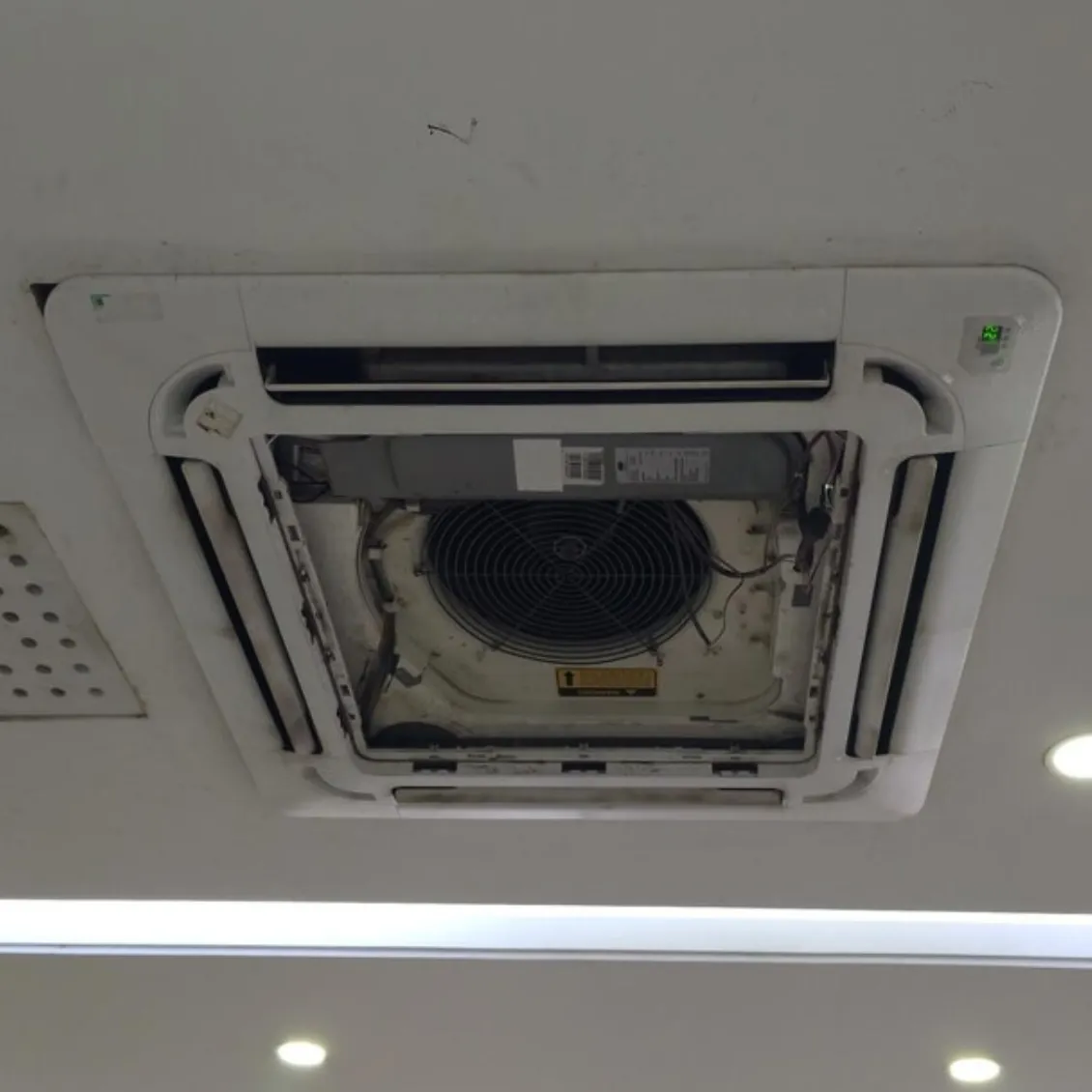

1. Dirty or Clogged Air Filter
This is the most common cause, and also the easiest to fix. When the air filter is clogged with dust, airflow through the indoor unit gets restricted. The compressor then has to work harder to push cool air through, drawing more current than it is designed for, which can trip the breaker.
If you have not cleaned your filter in the last month or two, start here before checking anything else.

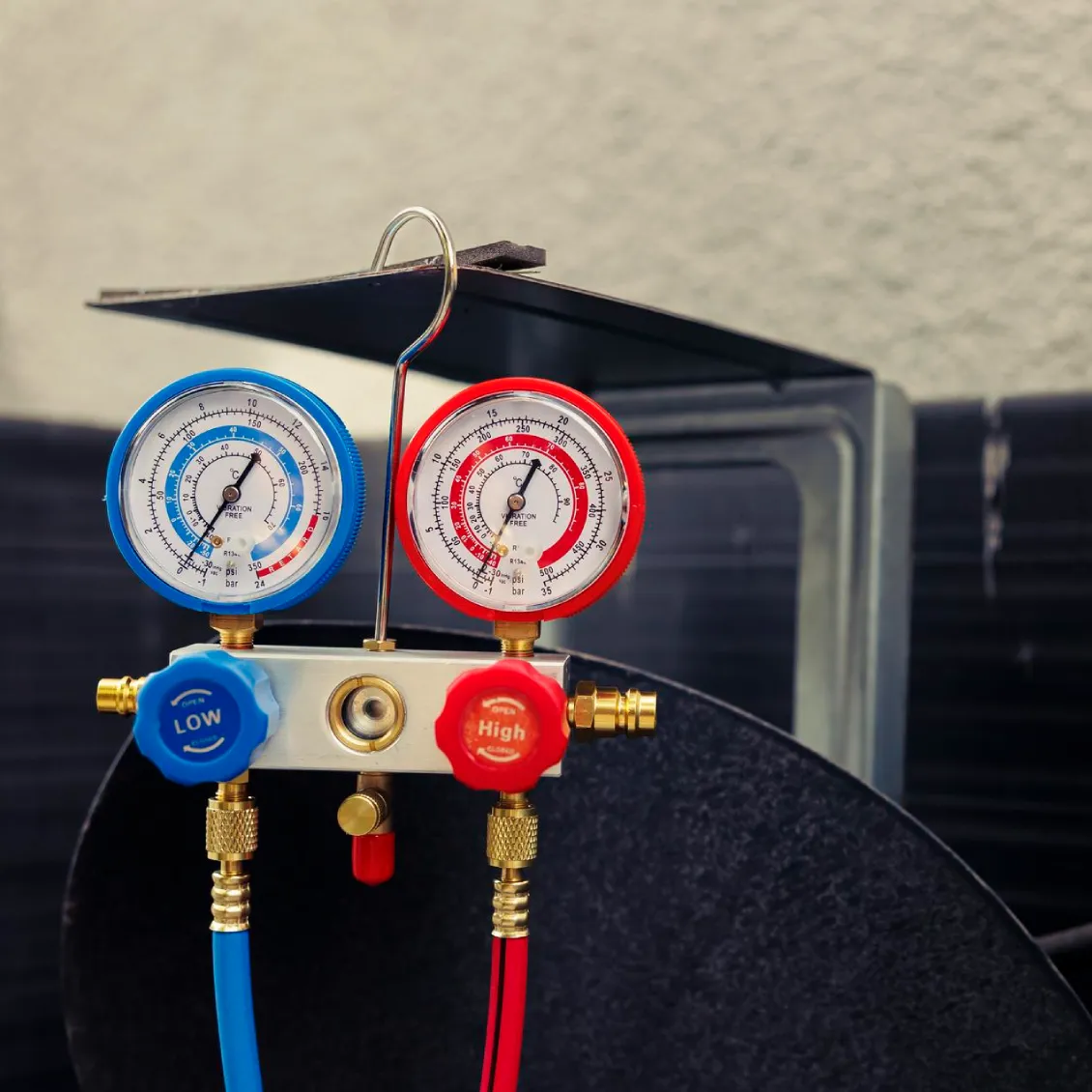

2. Refrigerant Leak or Low Refrigerant Level
Low refrigerant changes the pressure inside the system. The compressor compensates by running harder and hotter, pulling more current and sometimes tripping the breaker as a result. A leak also means your unit is losing cooling efficiency, so if your aircond feels weaker than before and the breaker trips at the same time, a leak is worth checking. Read more on whether an aircon gas leak is actually dangerous .

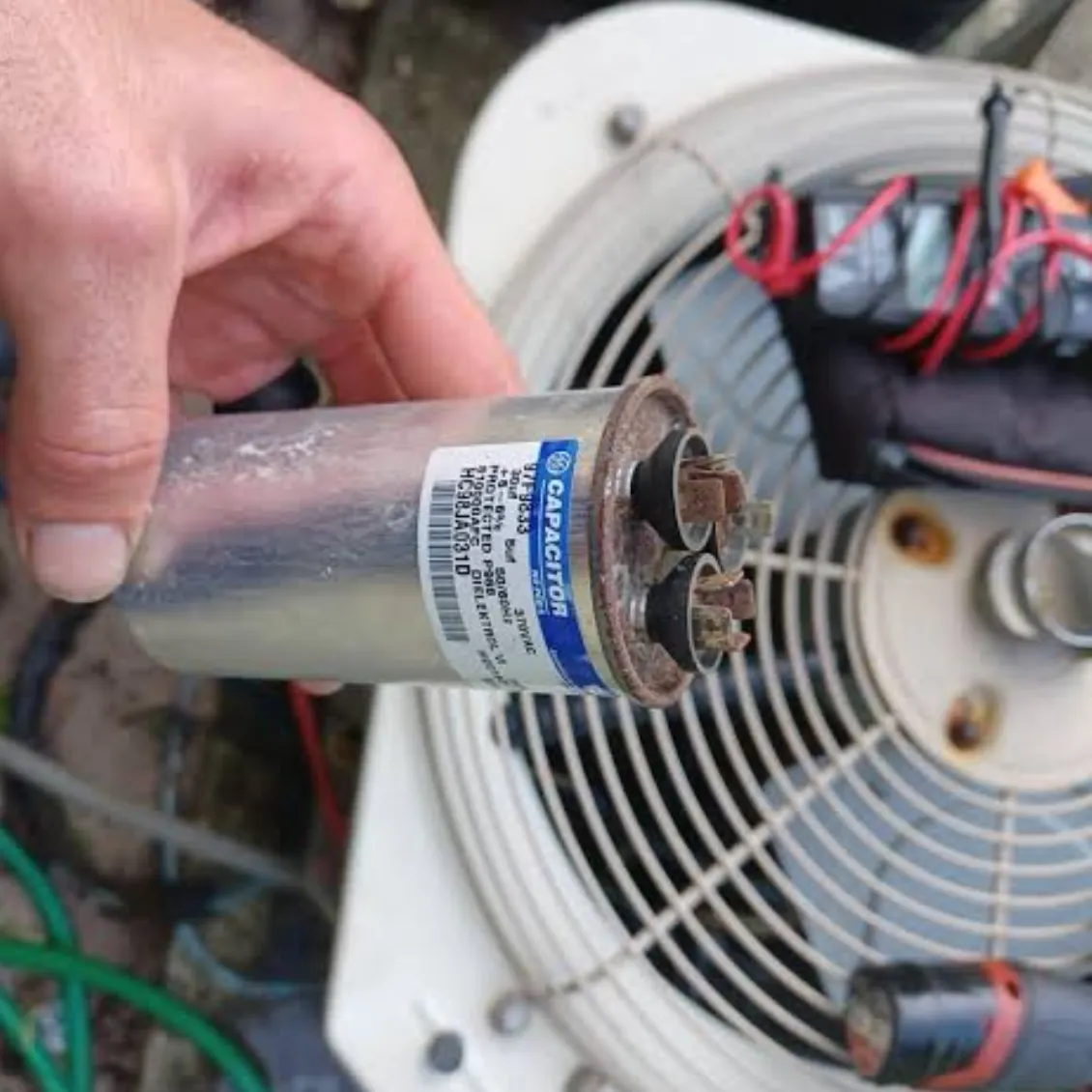

3. Faulty or Weak Capacitor
The capacitor gives the compressor and fan motor the initial jolt of energy needed to start up. When a capacitor weakens with age, the motor struggles to start, pulls extra current, and the breaker trips almost immediately when you switch the unit on. This is a common fault in units that are five years or older.

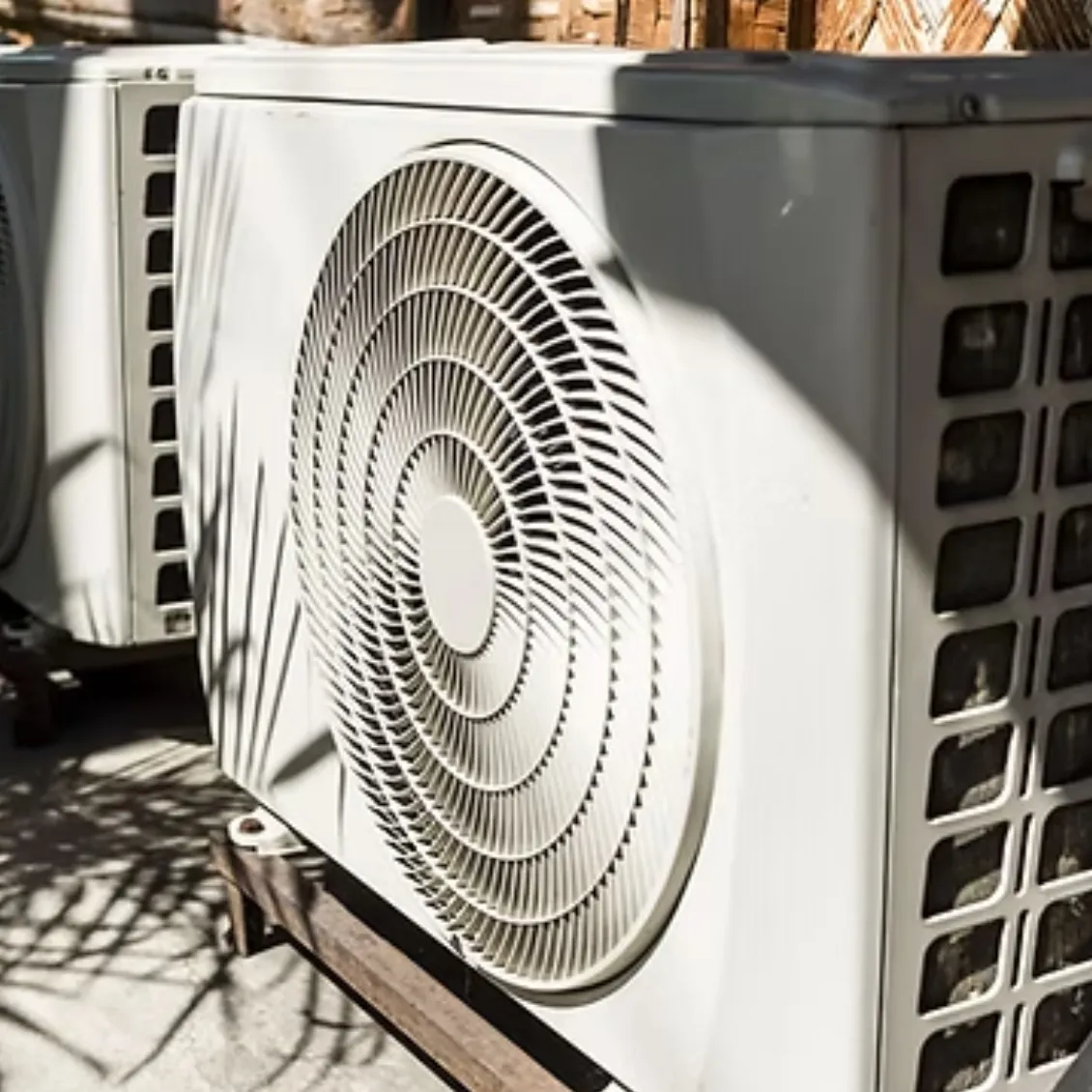

4. Compressor Problems
The compressor is the heart of your aircond, and it draws the most current of any component. A compressor that is failing, whether from wear, overheating, or electrical damage, can short internally or draw way more current than normal. This is one of the more expensive fixes, so catching it early matters.

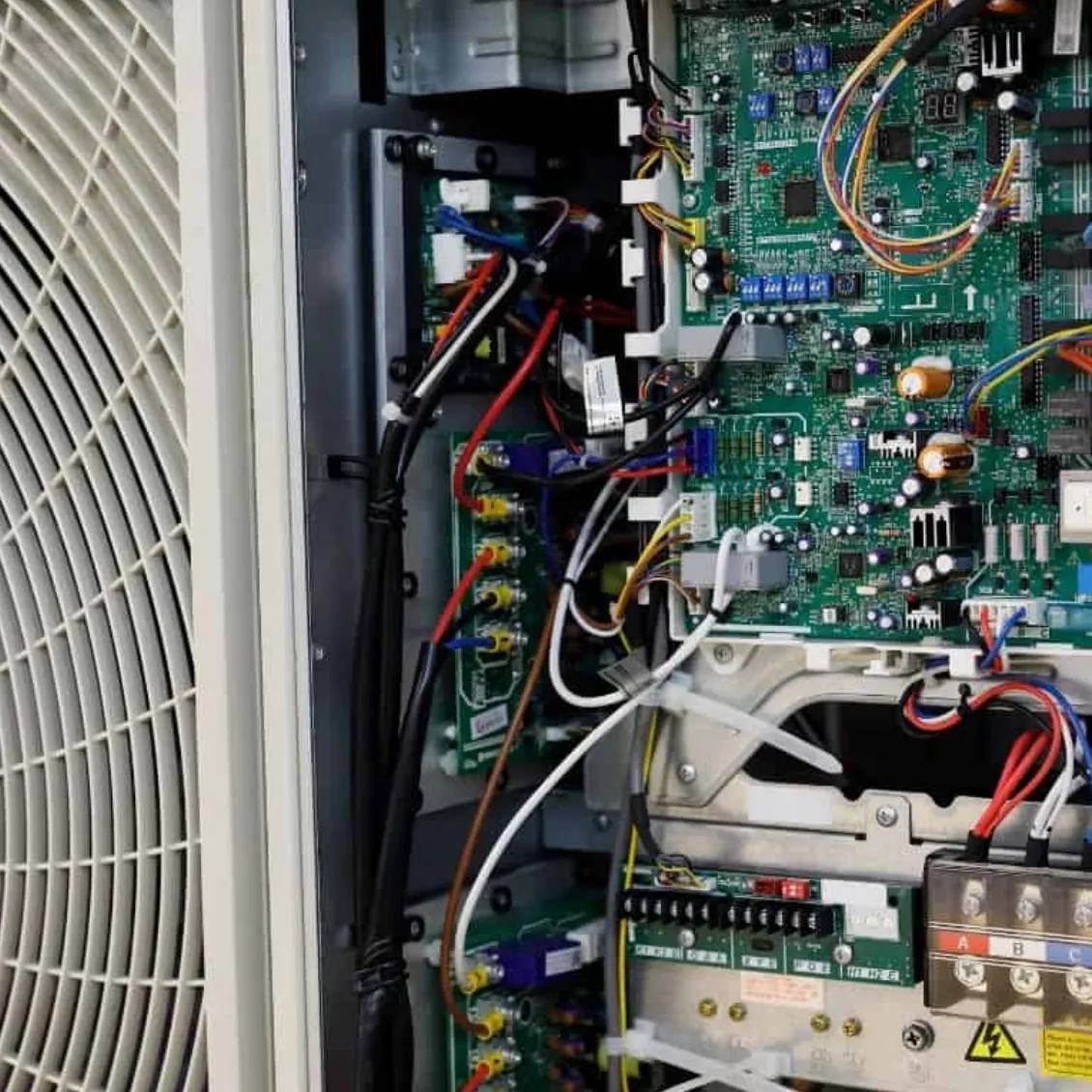

5. Short Circuit in the Wiring
Wiring inside the unit or between the indoor and outdoor unit can degrade over time, especially in Malaysia's humid climate where moisture can get into connections. A short circuit sends a sudden surge of current through the system, and the breaker trips instantly to prevent damage or fire.
This is not something to keep testing on your own. If you suspect a short, switch off the unit at the isolator and leave the diagnosis to a technician.
6. Oversized or Undersized Unit for the Room
An aircond that is too powerful or too weak for the room size ends up working outside its intended range. Oversized units cycle on and off too frequently, which stresses the compressor and electrical components. Undersized units run constantly at full load trying to cool a space that is too large for them.
Not sure if your unit matches your room? Try our BTU calculator, or read how to choose the right aircond BTU for your room.
7. Overloaded Circuit
Sometimes the aircond is not the actual fault. If the same circuit is shared with other high draw appliances, like a water heater or kettle, the combined load can exceed what the circuit is rated for, and the breaker trips even though your aircond is working normally.
Air conditioners generally need their own dedicated circuit. If yours is sharing a circuit with other appliances, that is worth reviewing.

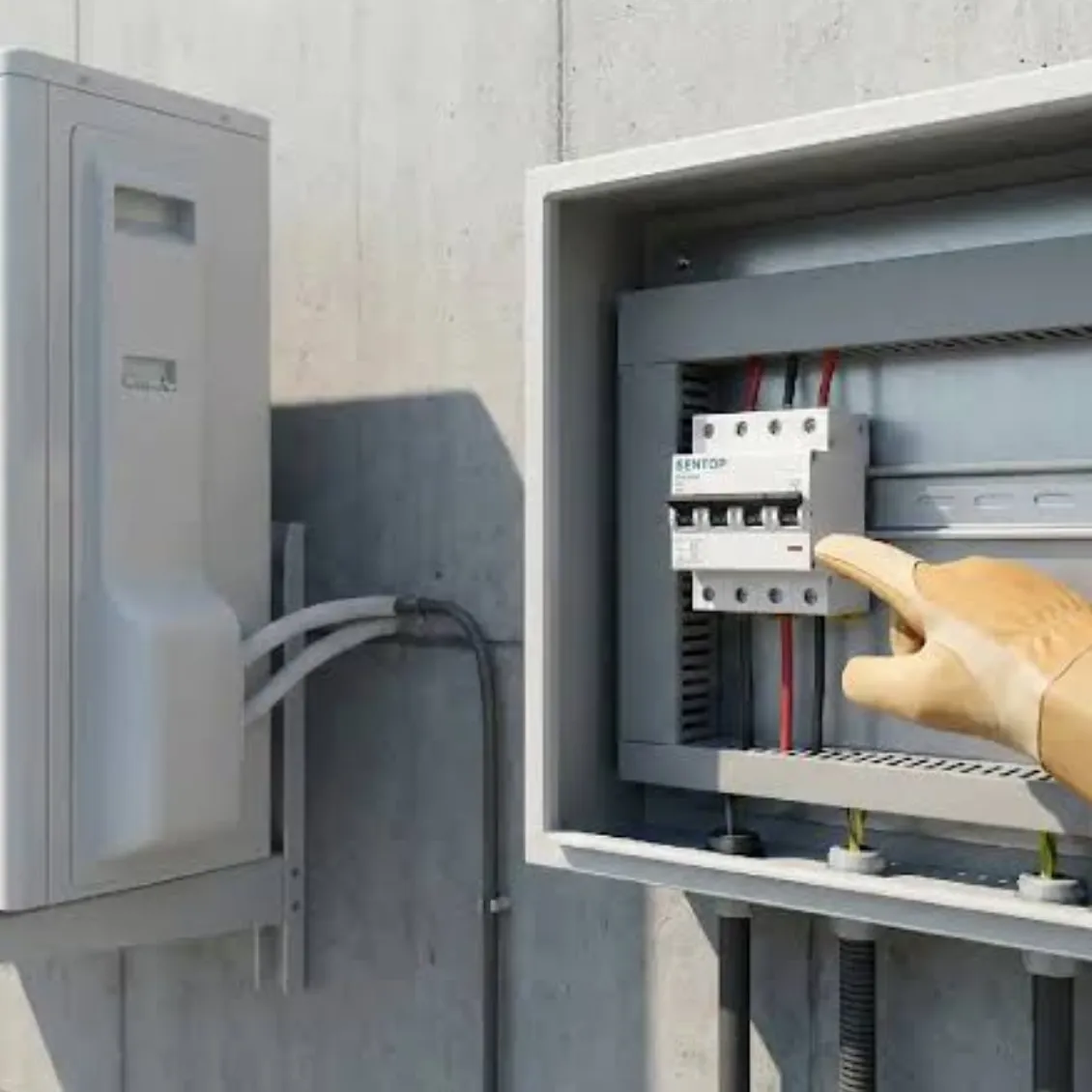

8. Faulty Breaker or Incorrect Breaker Size
Breakers wear out too. An old or damaged breaker can trip even under normal load. It is also possible the breaker installed for your aircond was undersized to begin with, which means it trips well before your unit is actually pulling a dangerous amount of current.

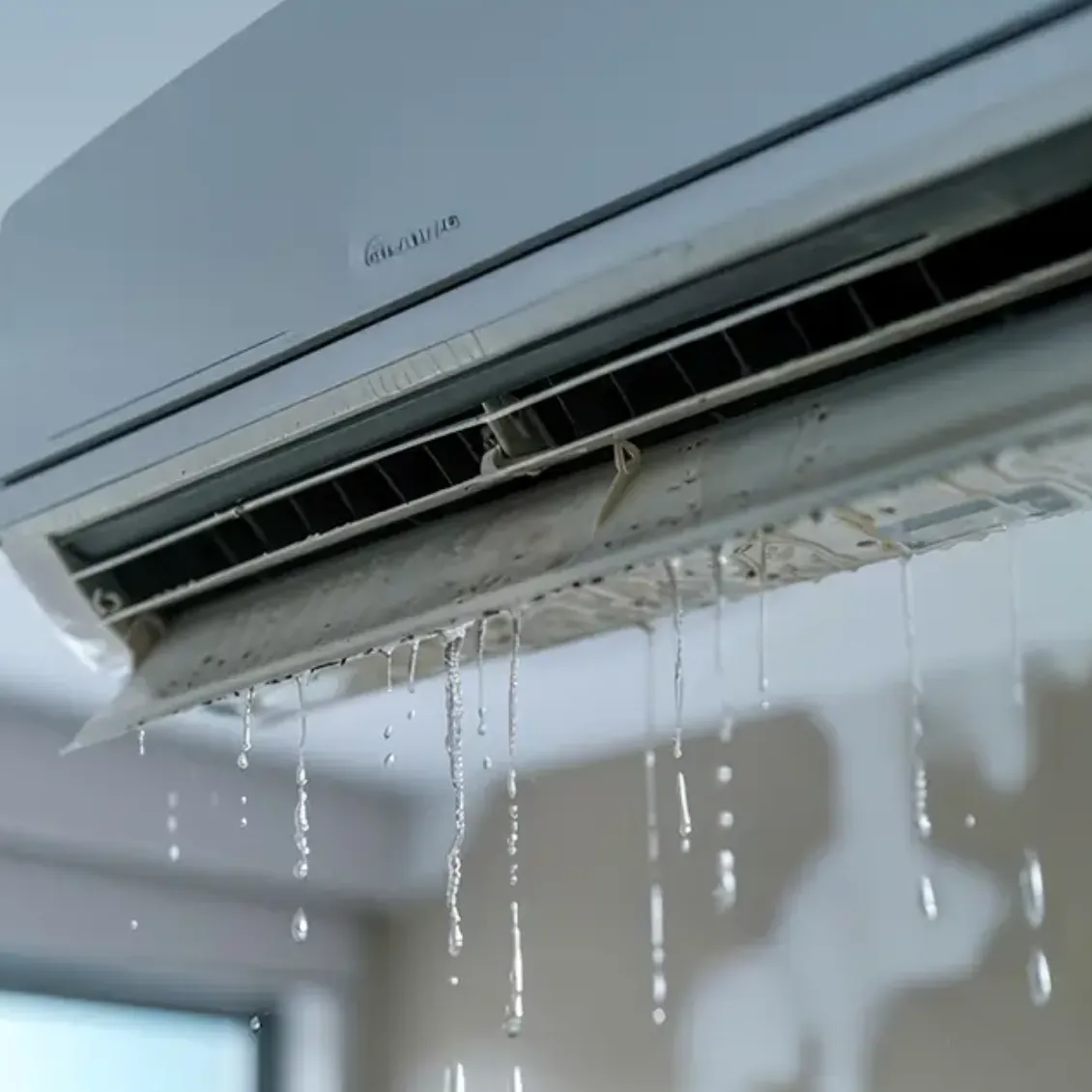

9. Water Leaking Into Electrical Components
A clogged drain pipe or condensation buildup can cause water to leak into areas near the wiring or control board. Water and electrical current do not mix well, and this can cause a trip or even more serious damage. If your unit has also been leaking, check our guide on diagnosing and fixing an aircond that leaks water, since the same root cause can sometimes explain both problems.
How to Diagnose the Cause Yourself
Before calling a technician, a few basic checks can narrow things down:
- Check and clean the air filter first, this solves the problem more often than people expect
- Note when the breaker trips. Right at startup usually points to a capacitor issue. After running for a while points more toward overheating, refrigerant, or the compressor
- Check if other appliances are on the same circuit
- Look for any burning smell or visible water near the unit. Both are signs to stop using the aircond and call for service
- Reset the breaker once. If it trips again immediately, do not keep resetting it repeatedly, that can make an electrical fault worse
When to Call a Professional
Some causes are safe to check yourself, but wiring, refrigerant, and compressor issues need proper tools and training to diagnose safely. If your breaker keeps tripping after cleaning the filter, or if you smell burning, see scorch marks, or hear unusual noises from the unit, stop using it and get a technician to look at it.
Our team handles this kind of troubleshooting regularly, from capacitor replacement to refrigerant leak repair to wiring faults. You can read more about our aircond repair service, or book a general servicing if it has simply been a while since your last checkup.
Preventing Future Trips
Most breaker trips are preventable with regular maintenance. Clean or replace the filter every one to two months, schedule professional servicing every three to six months depending on usage, and get any water leaks or strange noises checked early instead of waiting for a bigger failure. A well maintained unit rarely puts enough strain on the circuit to trip a properly sized breaker.
Frequently Asked Questions (FAQs)
Is it dangerous if my aircond keeps tripping the breaker?
It can be, especially if the cause is a short circuit or a failing compressor. The breaker tripping is actually a safety feature doing its job, but repeated trips mean something is wrong and should be checked rather than reset over and over.
Can I just reset the breaker and keep using the aircond?
Resetting it once to test is fine. But if it trips again right away or within a short time, stop using the unit and get it inspected. Continuing to force a reset can damage the unit further or create a fire hazard.
Why does my aircond only trip the breaker when it first starts?
This points strongly toward a weak or faulty capacitor. Starting the compressor motor requires a burst of current, and a capacitor that can no longer deliver that properly causes the motor to draw excess current at startup.
Does a dirty filter really cause the breaker to trip?
Yes, and it is one of the most common causes. A blocked filter restricts airflow, which forces the compressor to work harder and pull more current than it should. Cleaning the filter is the first thing worth checking.
How much does it cost to fix an aircond that trips the breaker?
It depends on the cause. A filter clean costs little to nothing if done yourself. A capacitor replacement is relatively affordable, while compressor repairs or rewiring cost more. Contact Sifu Engineering for an accurate quote once the issue is identified.
Should I hire an electrician or an aircond technician?
If the fault is clearly inside the aircond unit, an aircond technician can handle it. If the issue turns out to be with your home’s wiring or the breaker itself rather than the unit, an electrician may also need to be involved. Our technicians can usually tell which side the problem is on during inspection.
If your aircond keeps tripping the breaker and cleaning the filter has not solved it, get in touch with our team for a proper inspection. We cover Perak, Penang, and Kedah.
